​In-Drawer Charging Outlets - How to Measure a Cabinet for a Docking Drawer Blade or Blade Duo Installation

Docking Drawer Blade or Blade Duo Installation

4 Key Cabinet Measurements

You need 4 KEY CABINET MEASUREMENTS to confirm that a Docking Drawer Blade or a Docking Drawer Blade Duo will fit into your cabinet.

Warning - Docking Drawer Blade and Docking Drawer Blade Duo outlets will not power a hairdryer or any other high powered devices. Charging outlets max current is 3 amps.

Step 1

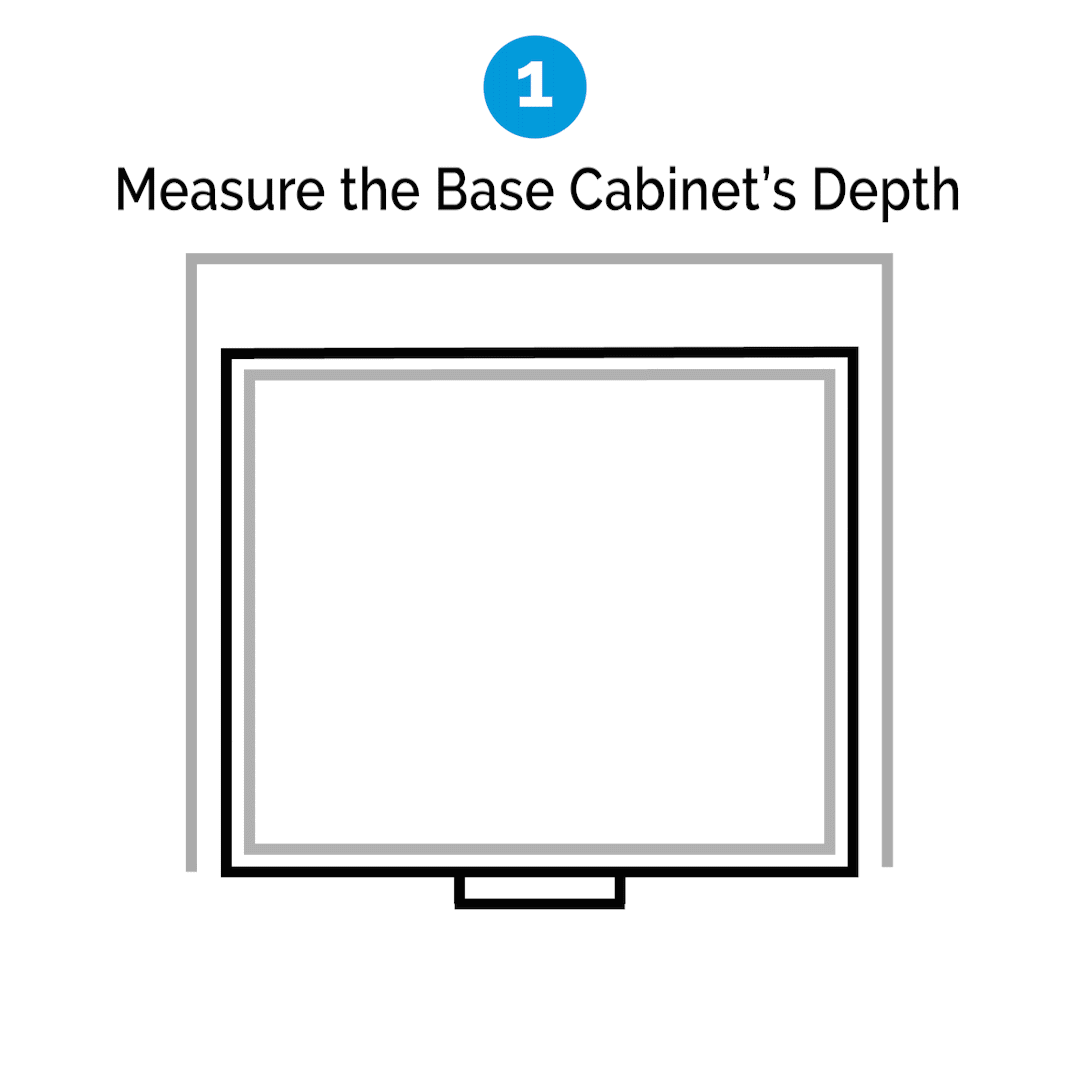

Measure the Cabinet Depth

Start by measuring the cabinet's depth. Docking Drawer Blade and Blade Duo outlets are designed to fit into base cabinets from 6" UP TO 24" deep.


Docking Drawer solutions are designed to fit base cabinets depths UP TO 24". (Have a base cabinet depth greater than 24"? No problem, call or email us with your cabinets dimensions and we can discuss outlets with you that offer greater extension.)


Step 2

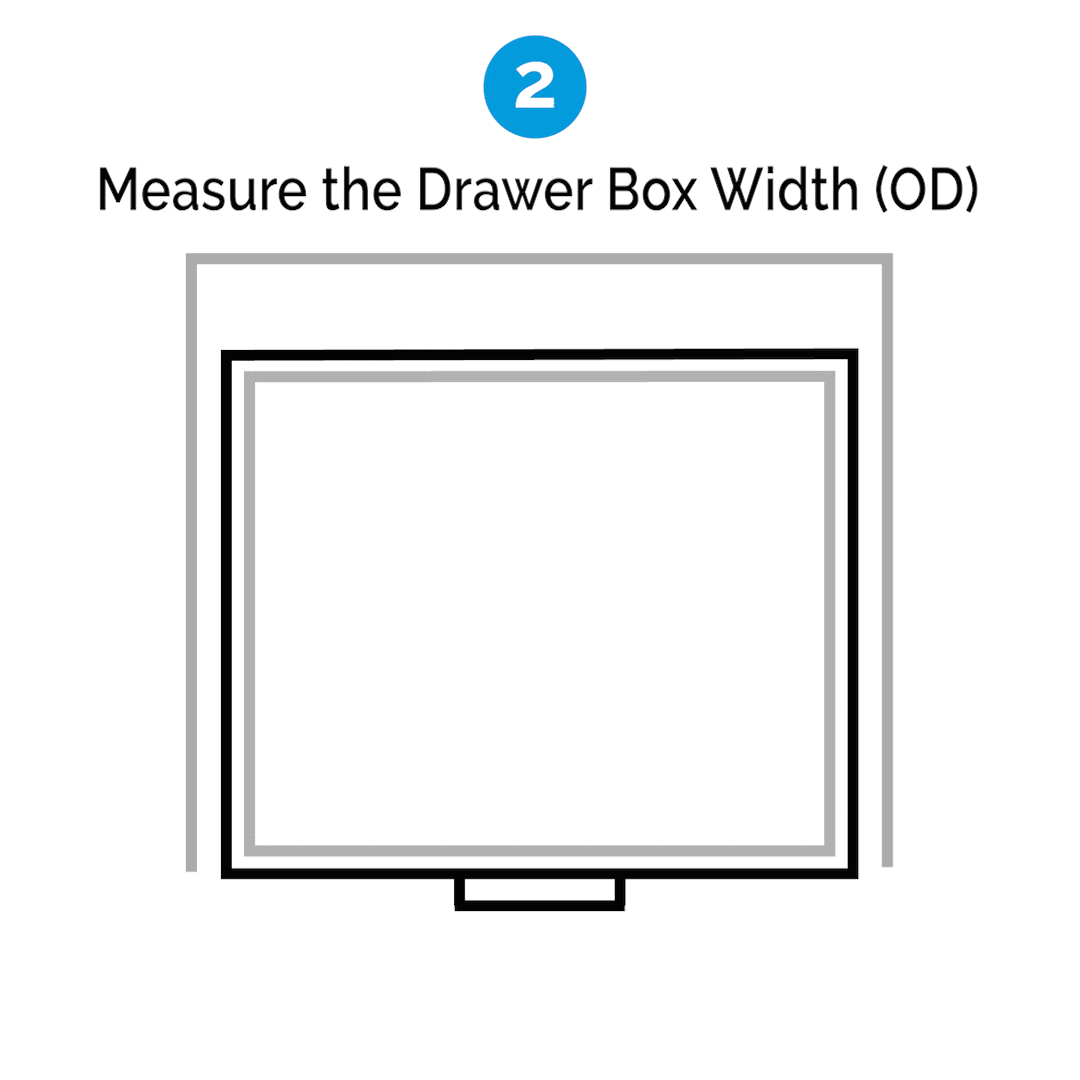

Measure Drawer Box Width (OD)

Both the Docking Drawer Blade and Blade Duo require a drawer box that is AT LEAST 15" WIDE. This ensures that there is enough clearance for both the outlet and the undermount slides to function without any issues. Using side mounted slides? If so, the drawer box could be narrower.

(See the Docking Drawer Specification Library for more details).


Step 3

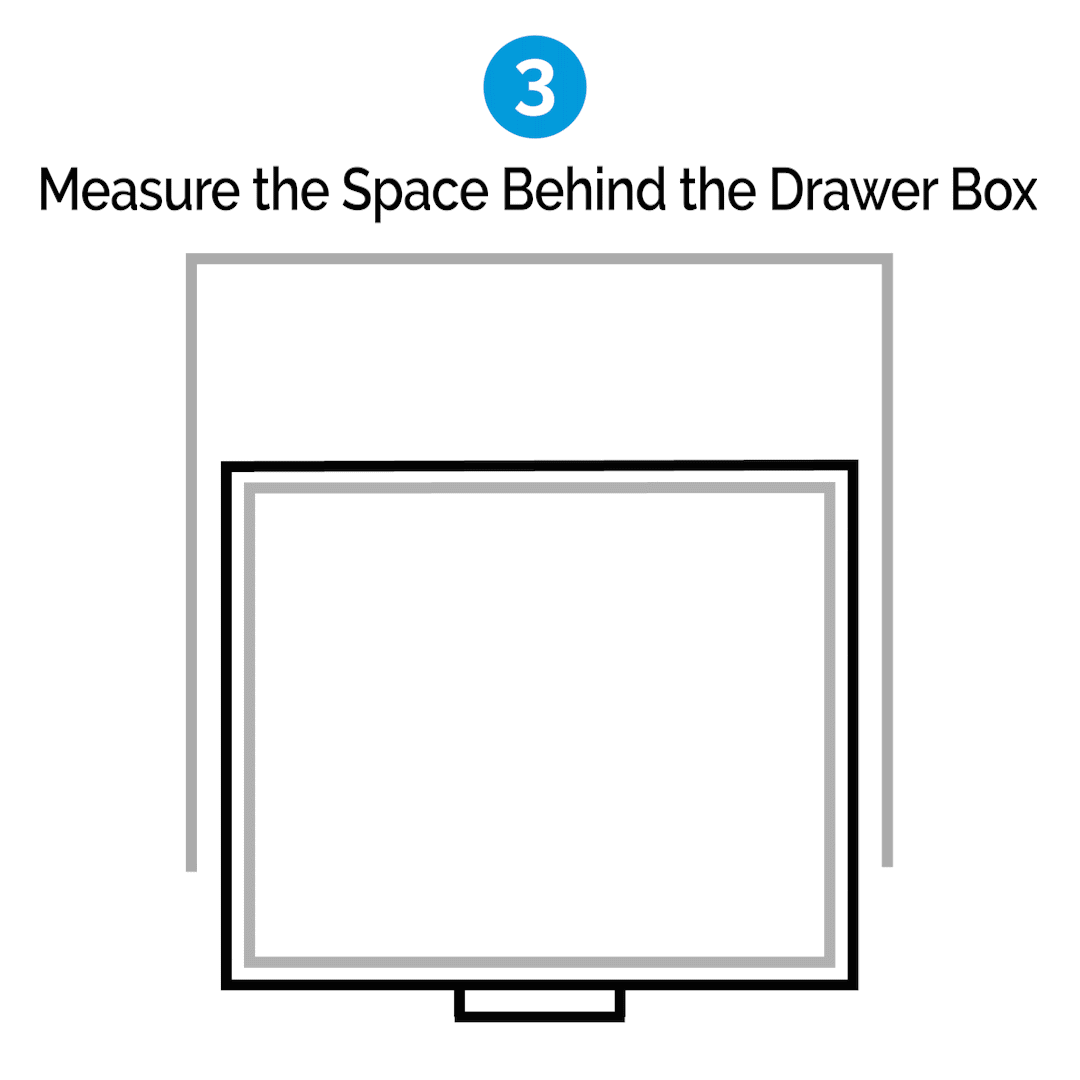

Measure Space Behind Drawer Box

Then measure the space available behind the drawer box.

Docking Drawer Blade and Docking Drawer Blade Duo In-Drawer Charging Outlets require a MINIMUM of 2" of space behind the drawer box.


Step 4

Measure Interior Drawer Box Height

Measure the interior drawer box height from the bottom of the drawer box the the top of the drawer box. Charging outlets requires a MINIMUM of 3" of interior drawer box height in order to provide enough material to surround the receptacle box.


Step 5

Will it Fit in My Cabinet?

Pro Tip - Remember that both the Docking Drawer Blade and the Docking Drawer Blade Duo share the same specifications. So if a Blade will fit into a drawer, so will a Blade Duo.

Now that we know the 4 KEY MEASUREMENTS, we can confirm if a Docking Drawer Blade or Docking Drawer Blade Duo will fit into your cabinet.

Cabinet Specifications

1. Cabinet Depth

Up to 24" deep

2. Drawer Box Width (OD)

More than 15"

3. Space Behind the Drawer Box

More than 2"

4. Interior Drawer Box Height

More than 3"

If you can say YES to each section above, you are ready to specify a Docking Drawer Blade or Docking Drawer Blade Duo into your project!

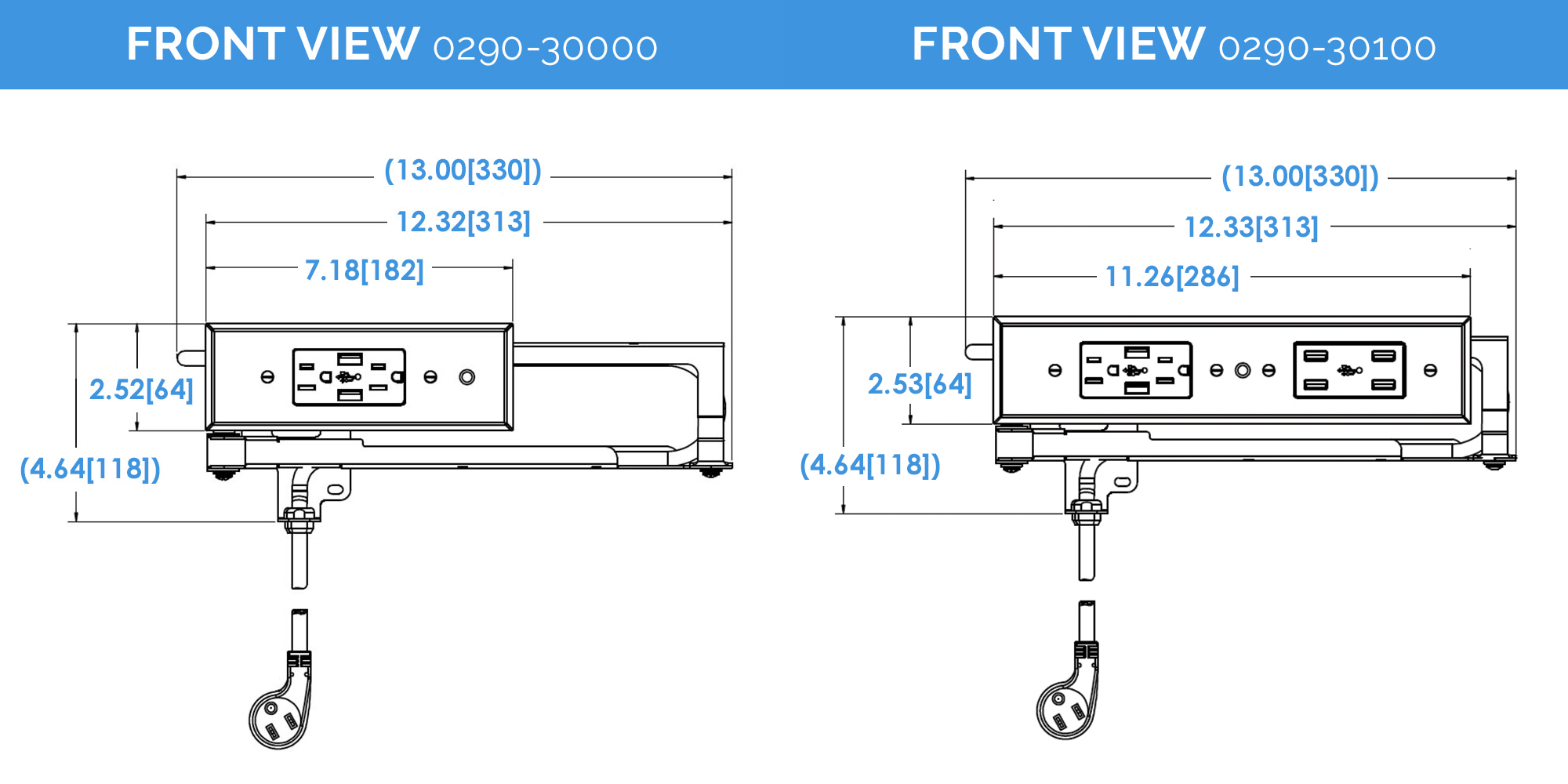

Outlet Assembly Dimensions

A Docking Drawer Blade 0290-30000 and Docking Drawer Blade Duo 0290-30100 have the following dimensions:

Docking Drawer Blade cover plate is 2.52 x 7.18" and Docking Drawer Blade Duo cover plate is 2.53 x 11.26".
The electrical cord is 4.5' long
Pro Tip - Note that all Docking Drawer Blade and the Docking Drawer Blade Duo In-Drawer Charging Outlets have the same specifications so they are interchangeable. Just the receptacle box cut out is wider for a Docking Drawer Blade Duo. Everything else is the same.


Step 6


Let's put it all together. If your cabinet measurements fall within these specifications, then the Docking Drawer Blade and Blade Duo will work for you! Learn more about where you can purchase our solutions.


Ready to Get Technical?

Visit our specification library for access to mounting diagrams, DXF and STEP files, installation instructions, and electrical planning guides to plan installations.


Ready to Purchase a Docking Drawer Blade Outlet?

Need to Measure for a Style Drawer Blade or Flush Installation?

If you need a solution to power hair dryers or other high-powered devices, head over to our instructions on how to measure your cabinet for a Style Drawer in-drawer powering outlet.


Rather talk to an outlet expert? Call us at (530) 205-3625
